100m Dual RG6 PVC Black Cable

100m Dual RG6 PVC Black Cable

Regular price £40.08 GBP
Regular price Sale price £40.08 GBP
Sale Sold out
Tax included.

Economy Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid

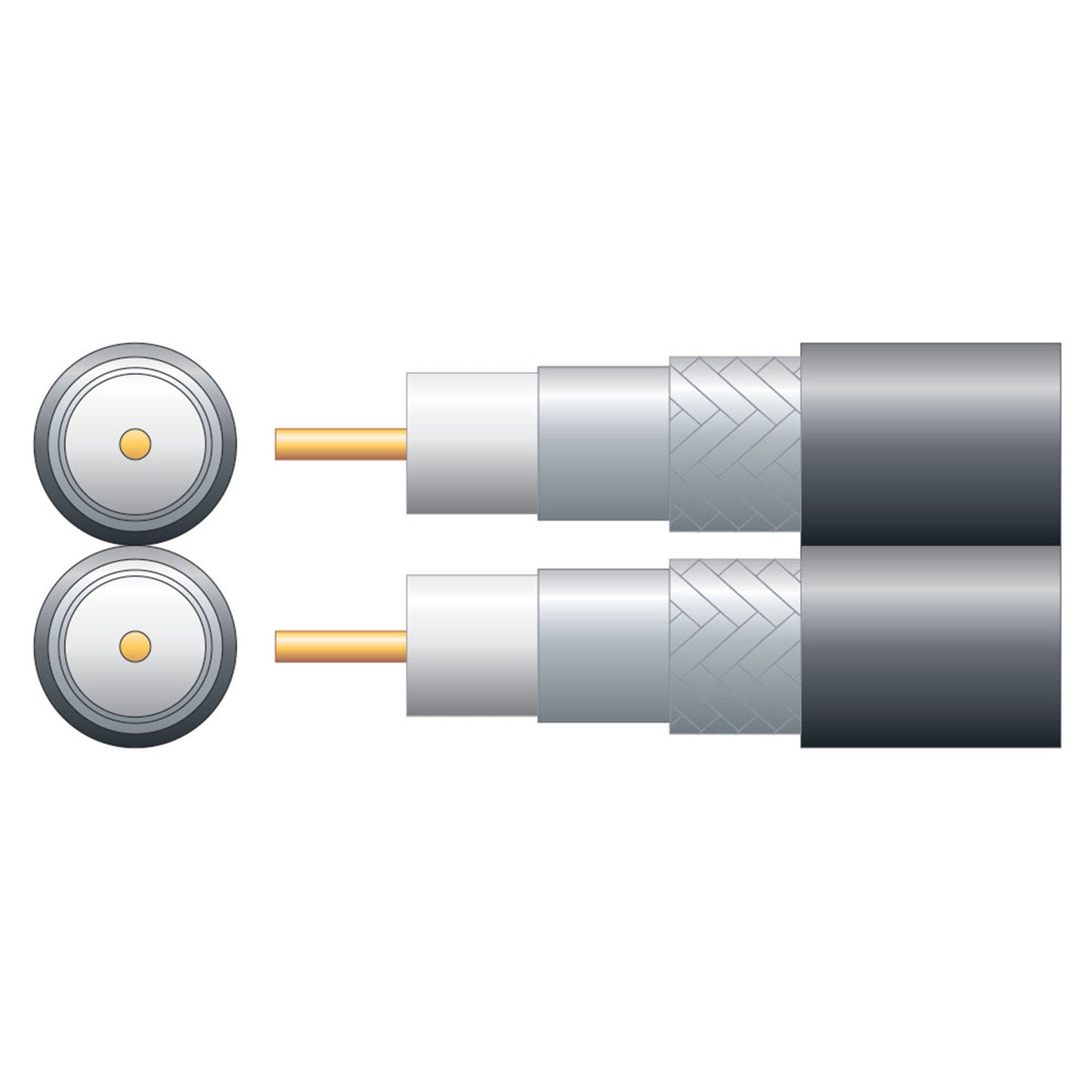

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

  • Solid CCS conductor
  • Foam filled PE dielectric
  • Binded aluminium screen
  • Aluminium braid
  • Supplied in 100m or 250m reel with metric cut markers
  • CSA2 x 0.79mm²
  • Conductor diameter2 x 1mmØ
  • Conductor materialSolid CCS
  • Braid2 x 64/0.12mmØ
  • Braid materialAluminium
  • ScreenAluminium / PET foil
  • Dielectric4.6mmØ foam PE
  • Cable : diameter2 x 6.6mmØ
  • Impedance75 Ohms
  • Capacitance54pF/m
  • Velocity factor83%
  • Return loss 5-400MHz24dB min./100m
  • Return loss 450-1000MHz20dB min./100m
  • Return loss 1000-2150MHz16dB min./100m
  • Attenuation @ 5MHz2.8dB max./100m
  • Attenuation @ 50MHz5.1dB max./100m
  • Attenuation @ 100MHz6.9dB max./100m
  • Attenuation @ 200MHz10.1dB max./100m
  • Attenuation @ 400MHz14.9dB max./100m
  • Attenuation @ 860MHz20.1dB max./100m
  • Attenuation @ 1000MHz22.2dB max./100m
  • Attenuation @ 1750MHz29.6dB max./100m
  • Attenuation @ 2150MHz33.3dB max./100m
