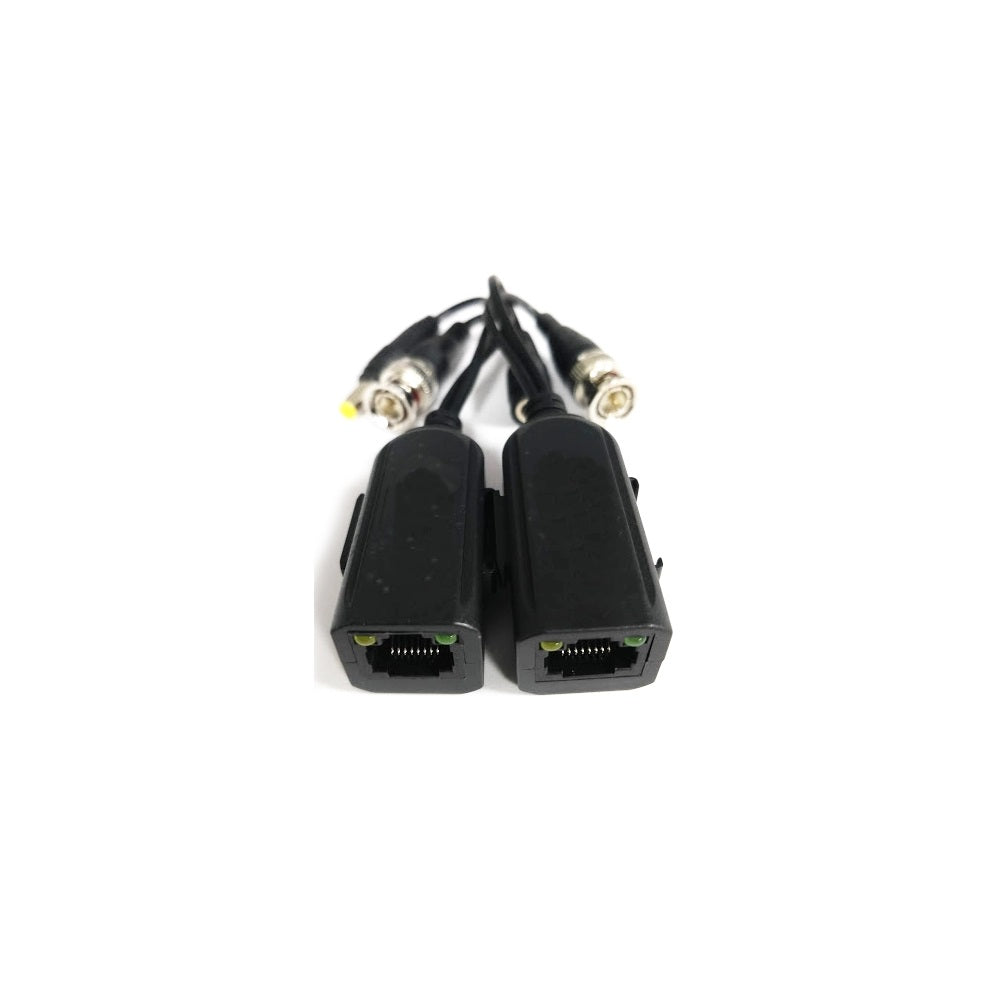

8MP Power & Video CCTV Balun

Description:

An 8mp Power and Video Balun for CAT5 and CAT6 cable.
Compatible with all resolutions up to 8mp and most modes (TVI, AHD, CVI and Analogue)
Nominal power is 12v but can carry up to 48v.
Always ensure the cable is wired correctly (Check instructions on the back of the Balun pack).
Incorrect wiring WILL damage either camera or Balun and void warranty.
Sold in packs of 2.

• Power & Video Balun: Gold Plated BNC for better transmission quality and long distance HD transmitter.
• Super Extensive Applications: Support all video devices, such as camera, monitor, DVR card and recorder etc.
  Compatible with all digital CVI, TVI and AHD Cameras.
• Video transmission Via UTP CAT5:LED indicate whether working (green light) or not working(yellow light) by RJ45.

Features:

1. Frequency Response: DC to 8MHz

2. Channel: 1 CH

3. Video Format: NTSC, PAL , and SECAM

4. Connector Video: Male BNC, RJ45

5. CMRR: 60 dB

6. Attenuation: 0.5dB Typical

7. Power: Yes

Power-Video signals are routed via UTP and RJ45.The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire.

• Power-Video signals are routed via UTP and RJ45. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire
• 60 dB crosstalk and noise immunity
• Compact size and easy installation
• Outstanding interference rejection, transient protection
• Indicated LED lights
• Save cable cost 30%-50%
• Voltage of power: 12V~36V
