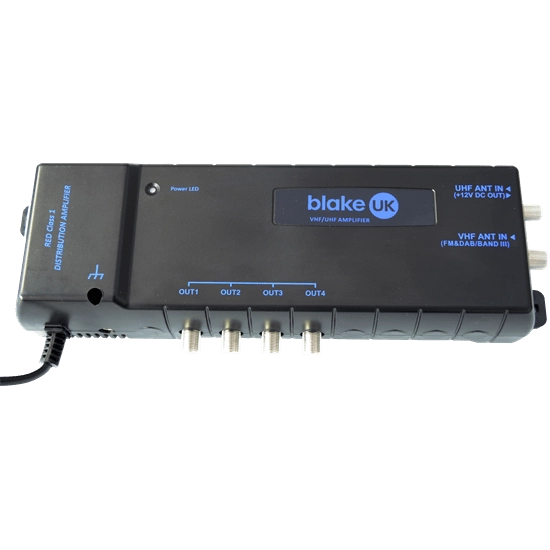

Blake 4-Way TV/FM/DAB Distribution Amplifier

RED Class 1, Blake 4-Way Distribution Amplifier 8dB (470-694MHz)

For the best reception with triple filtering:

5G, 4G & TETRA.

One of the best designed, CE/UKCA, Class 1 RED compliant, 4G/5G filtered set back distribution amplifiers on the market.

Designed to remove or reduce 5G/4G LTE interference and amplify TV frequencies within the 21-48 band (470-694MHz). It has 8dB gain.

The filter characteristics are >30dB for frequencies <400MHz and Class 1 EN 303 354 compliant for 5G filtered frequencies. The amplifier also filters TETRA signals below 470MHz.

The two inputs for UHF and VHF also amplifies and triplexes TV (433-698MHz) with FM (88-108MHz) and DAB (220/240MHz) / BAND III. The UHF input also has 12V DC output to power a masthead amplifier without extra power units.

This amplifier has low noise figures (Typical 1.17dB, middle of band) and uses F type connectors on both inputs and outputs.

The amplifier is designed with linearity in mind which allows the ability to handle strong local signals.

To ensure the lowest noise possible, we use a linear power supply which improves reliability.

The unit has a screw terminal for 6mm earth cable.
