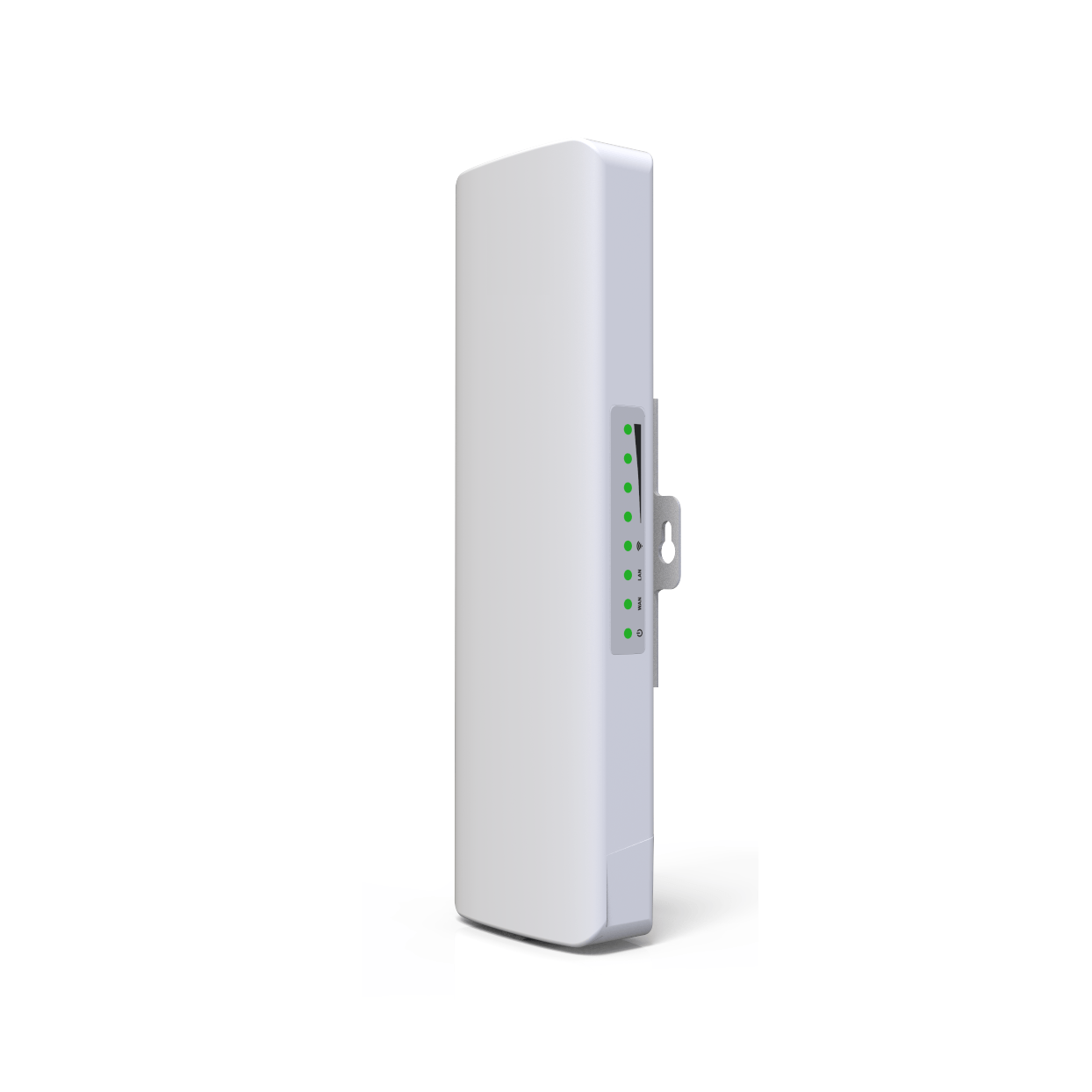

Clear Flow BEAM 2 2.4GHz 300Mbps Bridge Extender (Single Unit) - CF-E314N

Description

A versatile range of WiFi devices for creating and extending wireless networks.

The Antiference Clear Flow BEAM can be used standalone as an outdoor wireless access point or you can extend WiFi to outbuildings etc by using two units and setting up as a point to point wireless extender.

Sold singularly, if using as a point to point bridge you'll require two units.

FEATURES

• Ceiling & in-wall access points
• Outdoor Bridge/point-to-point extenders
• Simple to use on-board management software
• Programmable from PC, smartphone or tablet
• Open WRT support
• Qualcomm chipset
• Dual and single band

TECHNICAL SPECIFICATIONS

• Qualcomm QCA953 l 650Mhz, Industrial Grade CPU
• DDR: 64MB; Flash: 16MB; Power Amplifer Chipset: SE2576L

Antenna

• Built-in 2*14dBi Antenna

Wireless Standard

• IEEE802.ll b/g/n

RF Parameters

• Output Power (Max): 500mW (27dBm)
• Receiving Sensitivity (Max): -96dBm
• Frequency:802.11b/g/n:2.3GHz-2.7GHz

Modulation Mode

• DSSS   DBPSK@! Mbp, s    DQPSK@2Mbp, s    CCK @5.5/l 1Mbps
• OFDM: BPSK@6/9Mbp, s    QPSK@ l2 /18Mb,ps   16 -QAM@24Mbp, s    64- QAM@48/54Mbps
• MIMO-OFDM MCS 0-15

Transmission Rate

• !lb: 1, 2, 5.5, l! Mbps
• ! lg: 6, 9, 12, 18, 24, 36, 48, 54Mbps
• lln: MCS0-MCS15 (20MHz Analog Bandwidth)
• 20MHz: 144.4Mbps
• 40MHz: 300Mbps

Physical Ports

• l * 1Oil00Mbps WAN RJ45 Ethernet Port
• l * 10/lOOMbps LAN RJ45 Ethernet P011
• 1 * POE Output Slide Switch
• 1 * RESET Button

Indicator

• 8* Indicators:Power/WAN/LAN/WiFi/Signal Strength

Power Supply

• Power Supply: Support 802.3aflat
• Power Adapter: 24V/48V POE Power Adapter

Power Consumption

• < SW

IP Index

• 24KV Lightning Protection
• IP63

MTBF

• >250000H

Installation Way

• Wall-mounted/Pole-mounted/Rack-mounting

Case

• Plastic Case (Imported ABS Mate1ial)

Physical Features

• Size: 262*80*53MM; Weight: 0.32KG

Working Environment

• Working TemperahU"e: -40 C- 55 C
• Storage Temperahlre: -50 C- 75 C
• Working Humidity: 10%---90%RH Non-condensin
• Storage Humidity: 5%- 90%RH Non-condensing
