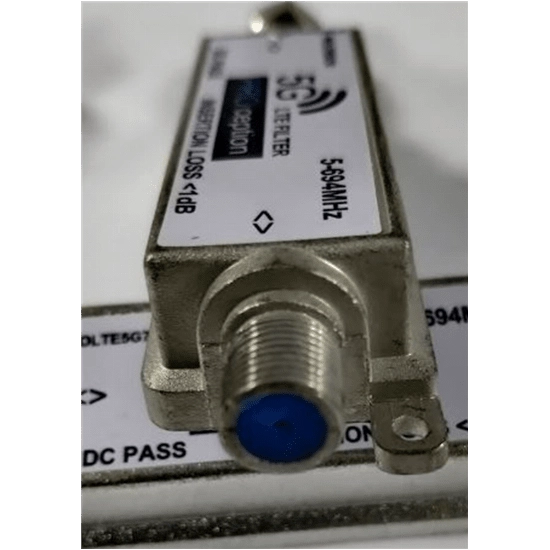

PROception F5GF 5G & 4G LTE Interference Filter

DESCRIPTION

Very simple to use, the PROception 5G filter simply connects between the aerial and the digital box or TV and removes any interference from the 5G and 4G mobile phone networks. This particular filter has screw in f-connections, with a plug on one end and a socket on the other.

• A Convenient low-cost filter for overcoming interference to broadcast reception from LTE (5G) mobile networks.

Passes all terrestrial broadcast transmissions up to and including TV channel 48 .

• High attenuation in LTE bands, will cure the majority of interference problems, from both base stations and mobile user equipment.
• Low insertion loss less than 1dB and good 75 Ohm match throughout the pass-band.
• F connectors with good screened metal casing, helping prevent leakage around the filter.
• Male and female connectors allow insertion into existing systems with no need for further cables or back-to-back adapters.
• Power-pass: this is a pure low-pass filter and passes AC and DC line-power.
• Care must be taken to avoid interference pick-up after the filter. Attention must be paid to the quality of components such as fly leads and outlet plates, etc.
• In severe cases two filters may be cascaded by screwing them directly together.
• These filters can be used externally you will however need to seal the f connections with self amalgamating
