PROception Flexible 'I/O Link' RF Modulator

Flexible RF Output Replicator Modulator, restoring traditional Sky™ distribution via IO Link

\nDistributing the analogue RF output of a Sky™ box from the main TV location to other rooms remains a popular solution for multi-room viewing. The new PROception RF Output Replicator Modulator, restoring traditional Sky&trade distribution via IO Link">PROLINK22 modulator and remote control unit allows unrivaled flexibility for this application. This unit connects to the I/O port on the Sky™ receiver and replaces the RF distribution and remote control functions previously available from the RF OUT 1 and RF OUT 2 connectors. \n \n  \n \nFeatures: \n

\n
• Connect to a TV Distribution System for viewing and IR Magic Eye control at multiple locations.
\n
• RF loop-through for Freeview™,etc., replaces Sky™ AERIAL IN connector.
\n
• High-quality UHF modulator with infrared return remote control capability on BOTH of its twin F-type RF outputs.
\n
• Simple channel setting using Sky™ box menu.
\n
• Two remote rooms can be wired directly from the proLINK (expandable to three using a splitter and without a power supply)*
\n

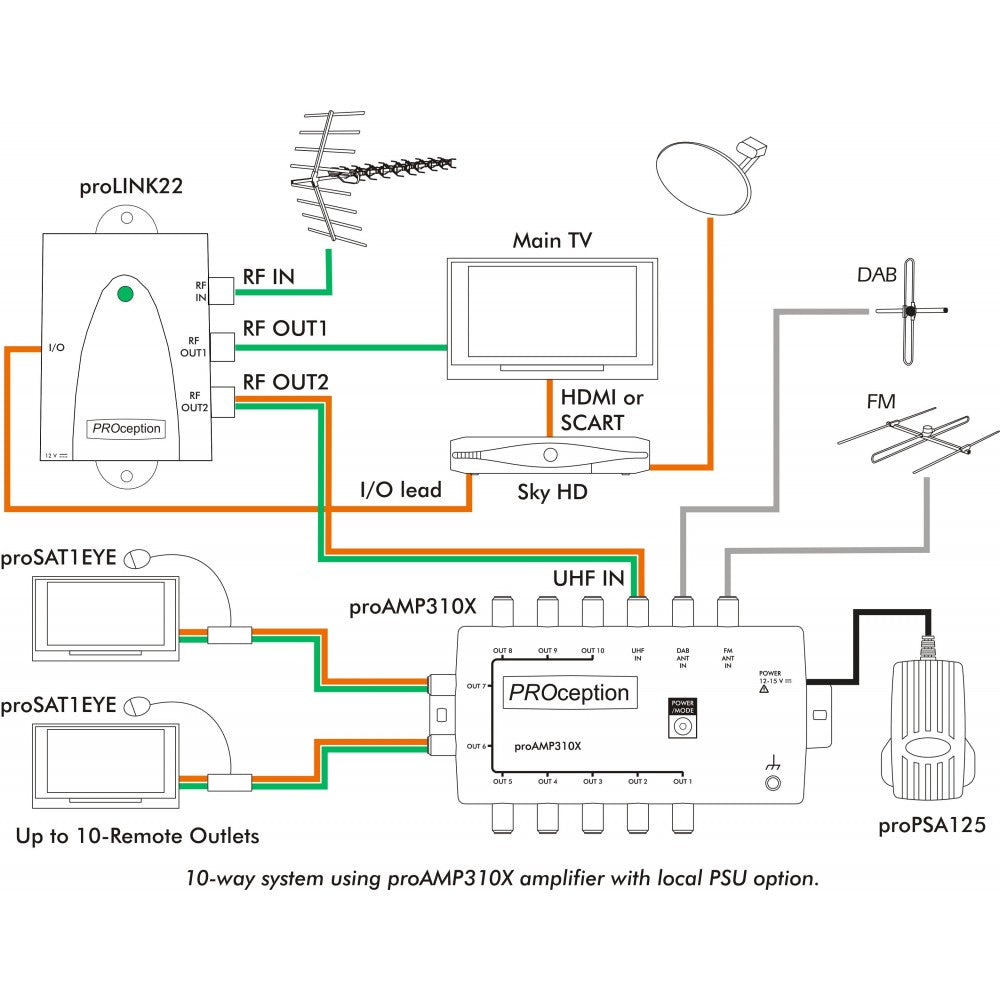

• Connect optional power unit (PROPSA125) to power 4-way system using UHF Masthead Amplifier; Variable Gain 1-16dB, Power Any Output">PROMHD14R or Amplifier, Line Powered, With Return Path">PROAMP104X amplifier. 10-way system also possible using UHF/FM/DAB Input With IR">PROAMP310X.
\n
• 3-colour power-status indicator.
\n
• Wall mountable with extended lead. (500mm).
\n
