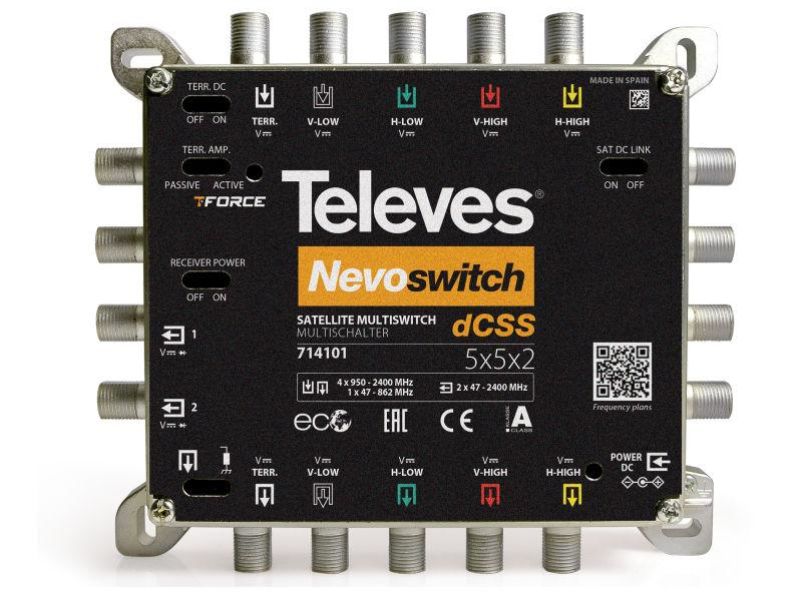

Televes dCSS NevoSwitch 5x2 dSCR Multiswitch - 714101

Multiswitch equipped with 5 inputs (one passive terrestrial and the four polarities of one satellite), which user outputs are compliant with SCR I (EN50494) and SCR II (EN 50607) and the legacy mode, which makes it compatible with any new or existing set top boxes. \nCan be used as a terminal (star topology) or as a cascade by using a simple switch.Furthermore, the exclusive DCFLEX functionality provides full flexibility to the multiswitch by allowing the equipment to be powered from anywhere in the system. The installer is free to choose the powering method for the multiswitch, to better adapt to the requirements of any given scenario. The versatility is provided by several control switches, but essentially by the capacity of the multiswitch to be isolated from the cascade (in terms of current) or not. \n \nThis product is certified with the European IRS Certification Scheme mark, representing that it has passed the relevant test as set out in the latest EICS test specification, available from the DTG or CAI \n

Highlights

\n

\n
• 2 user outputs, with up to 16 user bands each
\n
• DCFLEX functionality
\n
• Multiple powering options: From the power supply, from the receiver, or from the cascade through the satellite inputs or outputs
\n
• Easy to integrate in an existing system: By switching the SAT DC LINK to OFF with the power supply connected, the MSW is locally powered (or through the STB) without adding nor taking power from the cascade
\n
• Brings higher security to the set top boxes connected to the multiswitch, which can be fully isolated (RECEIVER POWER OFF) from the power supply in the cascade. If switched to ON, the MSW can be powered through the STB
\n
• The TERR.DC ON switch isolates or connects the power supply available from the cascade in the terrestrial branch. Can be useful for the feeding of a mast amplifier or a BOSS antenna, but also for the terrestrial branches of other MSW in the cascade
\n
• Wide voltage range: Voltages from 10 V to 20 V make it compatible with most existing systems
\n
• Eco mode: Isolated from the cascade, the multiswitch can reduce power consumption down to zero, when the set top boxes are disconnected and the terrestrial passive
\n
• Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
\n
• European design, quality, and manufacturing
\n

\n

Main features

\n

\n
• Very compact
\n
• Made of zamak
\n
• Input and output colour identification
\n
• Compatible with conventional multiswitches in the NevoSwitch series, and with other IRS systems
\n
• Versatile: Cascade and independent configurations in a single reference (by pushing a switch)
\n
