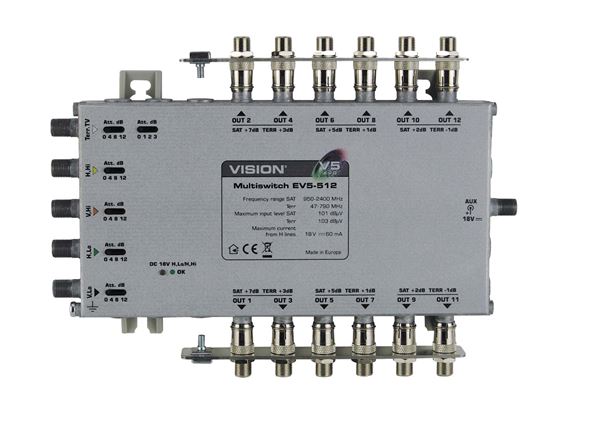

Vision 12 Way Multiswitch V5-512 - 118530

V5 has been developed for very low current consumption from the trunk cables, headend and from receivers. V5 multiswitches are powered either via the horizontal trunk cables or locally via the auxiliary input socket. These multiswitches are ideal in small, medium and large cascaded systems where up to 40 multiswitches can be powered from single V5-034 power source. All multiswitches have stepped gain at each bank of four (eight on 24 & 32) outputs to balance subscriber signal levels and allow long (up to 120m) and short subscriber cables to be connected to the same multiswitch.  Designed for large, medium and small line powered IRS installations  Power from headend, anywhere on horizontal trunk cables via remote power supply, or local power  Current consumption as low as 60mA from trunk and 65mA receiver  Active satellite and terrestrial with “stepped” gain for signal equalisation  Gold contact switchable input attenuators for all satellite and terrestrial input bands  High input / output capability for long subscriber lines  Pre-mounted earth bars and 6mm2 earth post  LED power indicator  Fully screened die cast housings for extreme interference immunity.
