Vision Trunk Power Hub For dSCR Systems - EV5-1855 - 124412

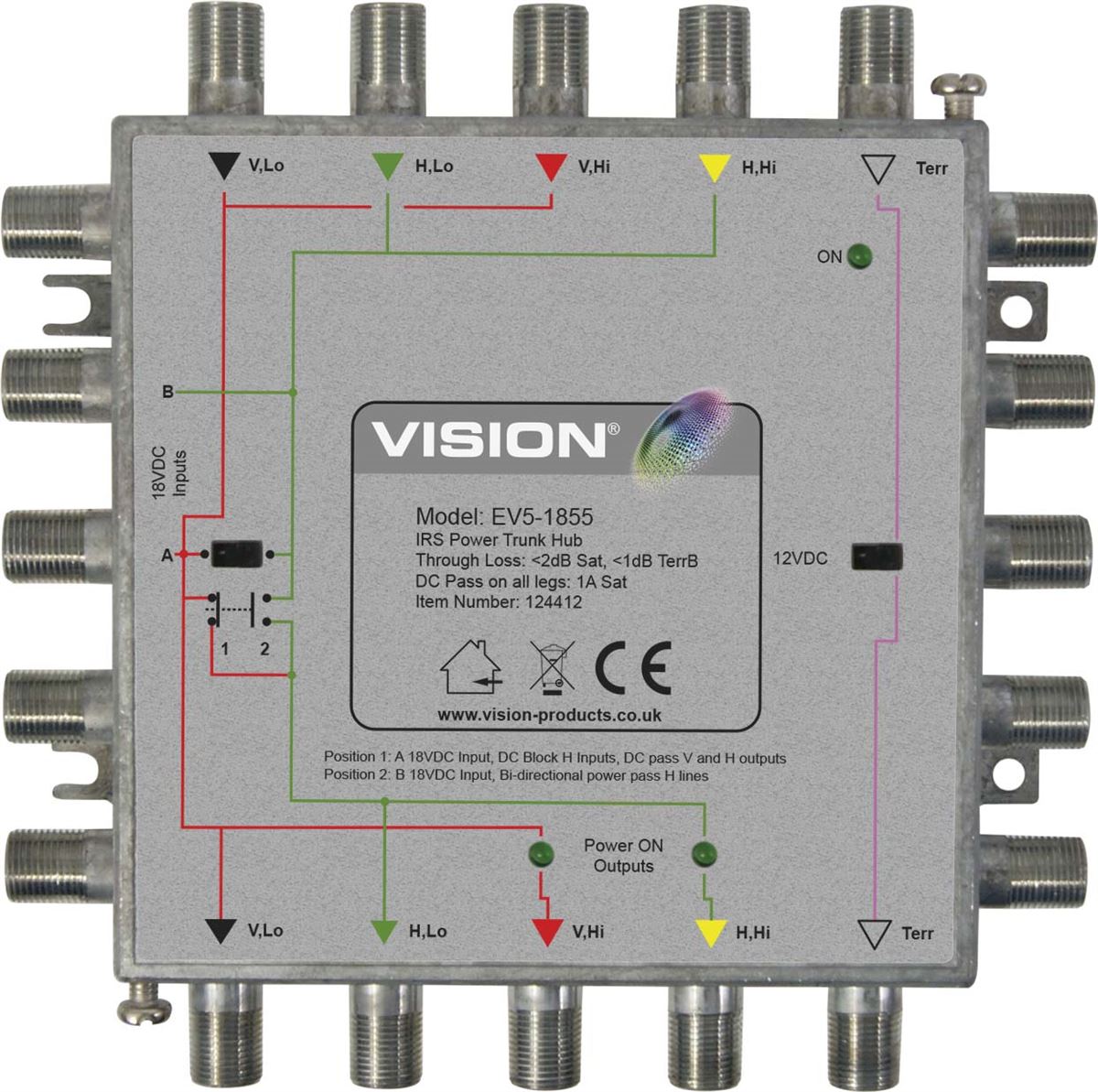

The EV5-1855 IRS Trunk Power Hub is designed to used as power injector where the system requires additional current to supply additional switches in the system. The Trunk Power Hub provides a means of injecting 18VDC In two directions with DC isolation to prevent the two power supplies conflicting with each other.  Connect EV5-034 to input B, Switch in position 2 allows voltage to pass up and down the system on the Horizontal trunk lines.  Connect EV5-034 to input B, switch in position 1 or 2 switch Terrestrial line power on and bi-directional power on terrestrial trunk.  Connect EV5-034 to input A and switch in position 1: allows voltage on all 4 trunk lines down only.  Connect EV5-034 to input A and switch in position 2: allows voltage on V,Lo & V,Hi trunk lines down only.  LED Power Indicator Green ON  Short Circuit Protected LED turns RED auto reset  Colour coded inputs / outputs  Insertion Loss Sat / Terr <1.5dB  Through Current 2 Amp  Fully screened die-cast housing to reject interference  75 Ohm Impedance.
